Detail Information

Chemicals:	Ni 17.5-22% C 7.5-10% Cr Balanced	Coating Hardness:	750-1000 HV0.3
Coating Max Operating Temperature:	870℃	Application:	Used For Hydraulic Valves ,furnace Rolls In The Steel Industry ,pump Parts Boilers Etc
Size:	-53+20um -45+15um -45+11um -30+10um -38+10um -45+20um -25+5um -75+45um -63+20um	Name:	25NiCr-Cr3C2 Thermal Spray Powders
Highlight:	25NiCr-Cr3C2 Thermal Spray Powders , WOKA 7202 Thermal Spray Powders , 25NiCr-Cr3C2 woka powder

Product Description

Chemical Composition:

Grade	Ct (Total Carbon)%	Ni %	Fe %	Cr %
BD-10101	7.5-10.0	17.5-21.0	＜0.3	Balanced

Specification & Physical Properties:

Specs.	Type	Size um	Apparent density g/cm3	Flow rate s/50g	Application
BD-10101-1	Cr3C2-NiCr 75/25 Agglomerated and sintered	53-20	＞2.0 g/cm3	N/A	HVOF JP5000 JP8000 DJ2600 DJ2700 Jet Kote Woka Jet/K2 HVAF APS
BD-10101-2	Cr3C2-NiCr 75/25 Agglomerated and sintered	45-20	＞2.0 g/cm3	N/A
BD-10101-3	Cr3C2-NiCr 75/25 Agglomerated and sintered	45-15	＞2.0 g/cm3	N/A
BD-10101-4	Cr3C2-NiCr 75/25 Agglomerated and sintered	45-11	＞2.0 g/cm3	N/A
BD-10101-5	Cr3C2-NiCr 75/25 Agglomerated and sintered	38-10	＞2.0 g/cm3	N/A
BD-10101-6	Cr3C2-NiCr 75/25 Agglomerated and sintered	30-10	＞2.0 g/cm3	N/A
BD-10101-7	Cr3C2-NiCr 75/25 Agglomerated and sintered	30-5	＞2.0 g/cm3	N/A

Introduction:

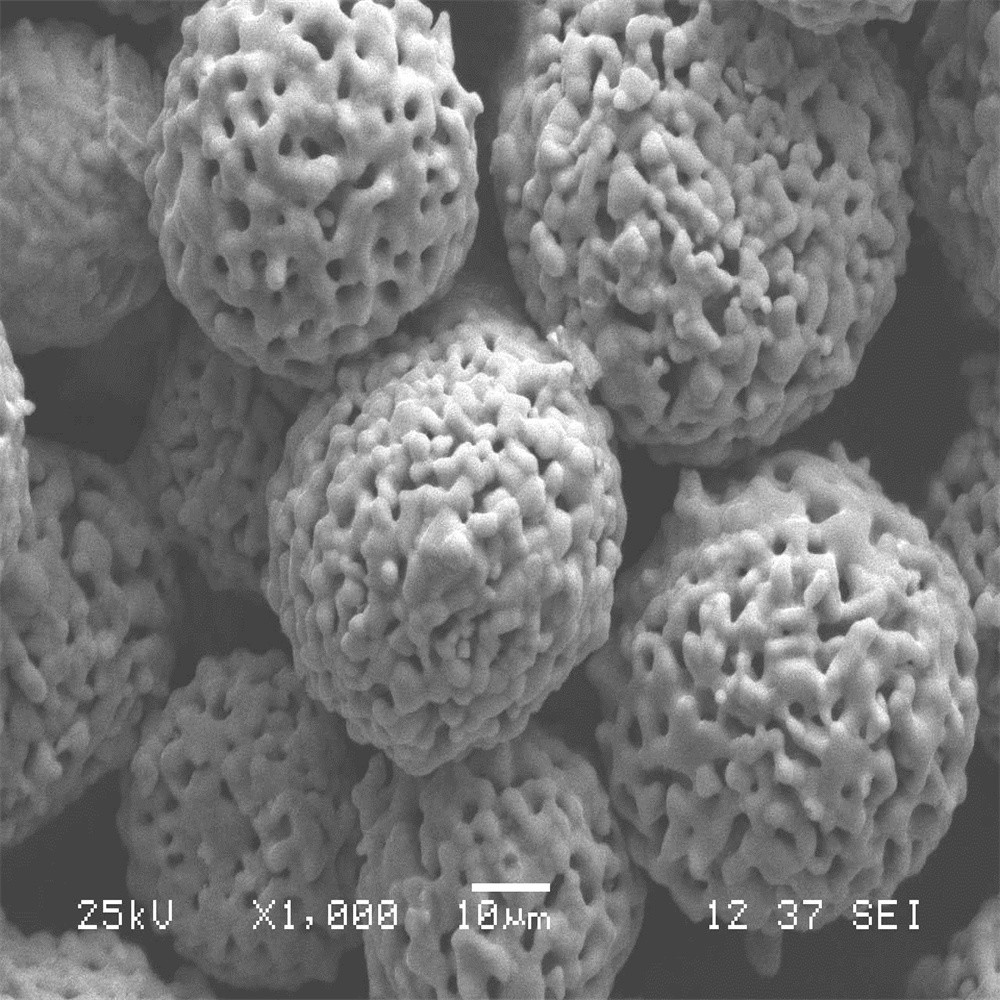

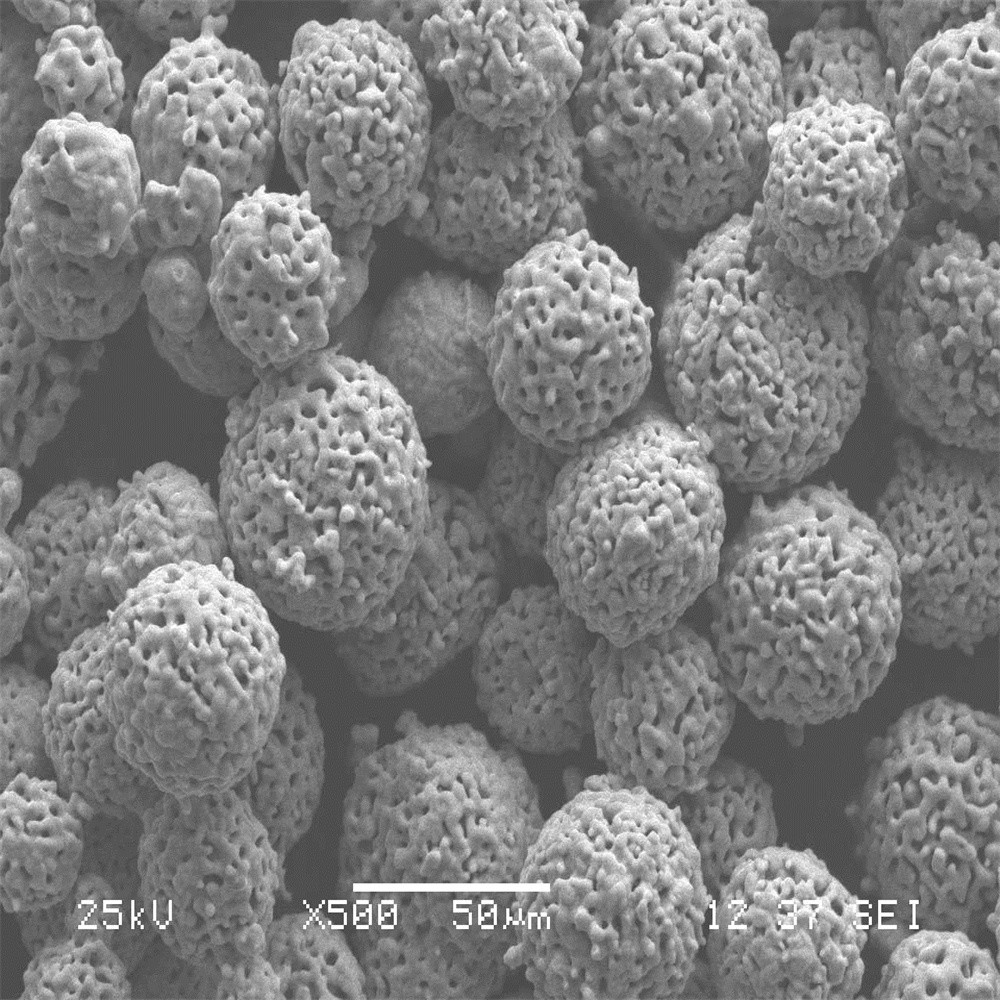

BODA 25NiCr-Cr3C2 series of products are spheroidal, agglomerated and sintered powders for thermal spray that contain 75 %chromium carbide as a hard, wear-resistant phase that has a minimal tendency for decomposition during the thermal spray process. A nickel-chromium (80 % / 20 %) matrix functions as a binder for the carbides, and is also responsible for the excellent corrosion and oxidation resistance of these coatings.When compared to coating materials containing tungsten carbide, coating materials that contain chromium carbide are often used because they can withstand higher service temperatures up to 870 °C (1600 °F).

Coatings of BODA 25NiCr-Cr3C2 series materials protect against abrasion, various forms of erosion and tribo-corrosion at elevated temperatures. They are well-known as an alternative to hard chromium plating with better corrosion resistance in sodium chloride, acidic and alkaline environments. Environments with HCl as a corrosive medium should be avoided.

HVOF coatings of these materials are dense, show good bond strength and are more homogeneous than coatings applied using atmospheric plasma spray or combustion powder flame sprayed coatings.

Typical Uses and Applications:

* Hydraulic cylinders and piston rods

* Valve stems

* Boiler coatings

* Chemical processing tooling

* Turbine components

* Sieves and cones

* Ship engine valve spindles

* Furnace rolls in metal production

Tag:

Place of Origin:	China
Brand Name:	BODA
Certification:	ISO9001:2015,ISO14001
Model Number:	BD-10101

Minimum Order Quantity:	50kg
Price:	US$45.0/kg-$47.0/kg EX-WORK
Packaging Details:	5kg per bottle
Delivery Time:	5-8 working days
Payment Terms:	T/T
Supply Ability:	5-10 tons per month

25NiCr-Cr3C2 Thermal Spray Powders Corrosion Resistance Equals WOKA 7202 WOKA 7203

25NiCr-Cr3C2 Thermal Spray Powders

WOKA 7202 Thermal Spray Powders

25NiCr-Cr3C2 woka powder
