Irregular Cast Tungsten Carbide Powder For Surfacing Oil Drilling Tool(Fuse WC,Cast WC,CTC,Crushed WC)
| Grade | W | T.C | F.C | Fe | Ti | Ni | Cr | Co | V | |
| BD20101 | Balance | 3.8-4.2 | ≤0.05 | ≤0.5 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 | |
| Hardness HRA | Micro-hardness HV 0.1 | Density g/cm3 | Melt Point ℃ |
| 93.0-93.7 | 1700-2500 | 16.5 | 2525 |
| Particle Size | |
| 20-30mesh | 100-140mesh |
| 30-40mesh | 100-230mesh |
| 40-60mesh | 120-170mesh |
| 60-80mesh | 140-200mesh |
| 80-120mesh | 170-3250mesh |
| 60-325mesh | 200-325mesh |
| 80-200mesh | -325mesh |

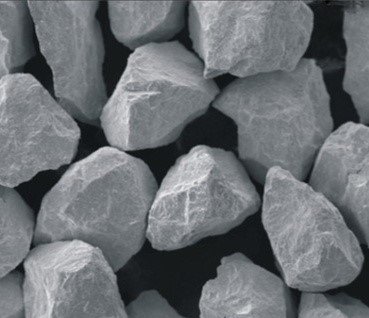

Crushed Tungsten Carbide is a powder of irregular dark-gray granule with high melting point,
high hardness and high wear resistance.Adopted high temperature melting, crushing process.
The microstructure of the cast tungsten carbide should be uniform, compact and uniform in gloss, and there should be no under-burning or over-burning. The eutectic needle structure is not less than 75%.
Due to its special characters, the products are widely used in mining, oil, metallurgical industry, steel,
construction machinery and other industries which applied in the pre-reinforcement of wear-resistant surface
and repairing for easily worn parts.
Crushed Tungsten Carbide can be used as the oil drilling & exploring drill matrix by the way of melt-penetration.
It canalso bead-welded at the locations where wear resistance needed on the unit by oxygen-acetylene welding or by electrical welding,spray welding,brazing welding and infiltrating welding.
Related Products:
Hard facing materials series:
| Product | Boda Code | Regular Particle Size | Main Performance | Spray Process | Applicaitons |
| Cast Tungsten Carbide | CTC/Cast WC | 60-80Mesh | high hardness and high wear resistance. | Laser cladding,Arc Welding,PTA,Spray and fuse powder welding | PDC bit, oil drill pipe, TC bearing, etc |
| 80-100mesh | Tool surface reinforcement | ||||
| 100-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 10-2700mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| 200-400mesh | |||||
| Spherical Cast Tungsten Carbide | SCWC/CTC-S | 100-200mesh | high hardness and high wear resistance. | Laser cladding,Arc Welding,PTA,Spray and fuse powder welding | PDC bit, oil drill pipe, TC bearing, etc |
| 100-270 | Tool surface reinforcement | ||||
| 60-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 100-270mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| Macro Tungsten Carbide | Macro WC,MWC | 60-80mesh | Hard phase blend component for wear resistance | Laser cladding,Arc Welding,PTA,Spray and fuse powder welding | used as the materials of petroleum |
| 80-200mesh | geological drilling tire body | ||||
| 2000-400mesh | a new type of cemented carbide material. | ||||
| -325mesh | Mining equipment crushers and milling machinery,Heavy equipment mixer blades,decanters or extruder screws. | ||||
| Crystalline Tungsten Powder | CTP | 60-325Mesh | strength and wear resistance | Vibration and liquid Metal Infitration | petroleum drilling diamond bits |
| 100-200mesh | as the raw materials of oil perforation pills,high temperature combustion chamber spraying coating | ||||
| 140-325mesh | wear resistance and high temperature resistance parts coating for slot or warehouse crashing parts,foklift buckets,crane hopper,screw feeder,ingot tongs and grind device components. |
