Spherical Cast WC Excellent Abrasive Wear Resistance In Harsh Environments,
Combined With Good Impact Resistance.
(CTC-S)
Chemicals compositons:
| Grade | W | T.C | F.C | Fe | Ti | MO+CO+Ni | Cr | Vi | SI | |
| BD20401 | Balance | 3.8-4.2 | ≤0.08 | ≤0.5 | ＜0.1 | ＜0.2 | ＜0.1 | ＜0.05 | ＜0.02 | |
| Micro-hardness HV 0.1 | Apparent Density g/cm3 | Melting Point ℃ |
| >2500 | >9.0 | 2525 |
Size: 100-270mesh,60-100mesh.
Hardness: 80.5HRC
Apparent desity: 9.0-9.5g/cm3
Flow rate: Max 10 s/50g
(Can be customized according to customer specific requirements)
Product Introduction:
With cast tungsten carbide as raw materials, adopted high temperature modification,
spheroidizing method by plasma technology,
make it on the basis of the original cast tungsten carbide chemical performance is stable,
has many characteristics, such as uniform structure and good liquidity.

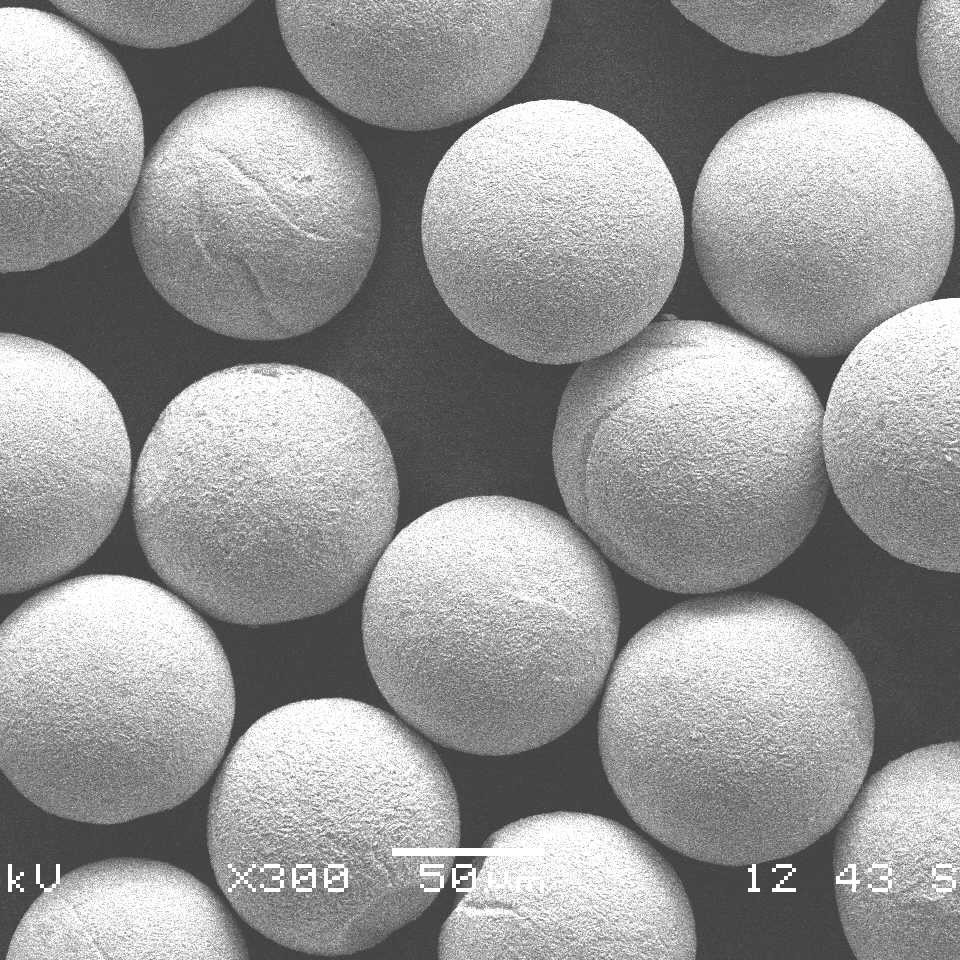

Spherical Fused Tungsten Carbides (CTC-S) are spheroidally shaped,
two-phase tungsten carbide powders produced by a special melting process.
This makes them the most wear resistant fused tungsten carbide products available on the market.
CTC-S materials are designed to be the hard phase constituent of a wear-resistant surface.
Depending on the surfacing process, they can be blended with self-fluxing alloys or used a filler material for rods, wires, electrodes or infiltration applications.
Overlays containing these materials offer excellent abrasive wear resistance in harsh environments, combined with good impact resistance.
| Harding facing materials(Tungsten Carbide Series) | |||||
| Product | Boda Code | Regular Particle Size | Main Performance | Spray Process | Applicaitons |
| Cast Tungsten Carbide | CTC/Cast WC | 60-80Mesh |
high hardness high wear resistance. |
Laser cladding, Arc Welding, PTA, Spray and fuse powder welding |
PDC bit, oil drill pipe, TC bearing, etc |
| 80-100mesh | Tool surface reinforcement | ||||
| 100-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 10-2700mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| 200-400mesh | |||||
| Spherical Cast Tungsten Carbide | SCWC/CTC-S | 100-200mesh | high hardness and high wear resistance. |
Laser cladding, Arc Welding, PTA, Spray and fuse powder welding |
PDC bit, oil drill pipe, TC bearing, etc |
| 100-270 | Tool surface reinforcement | ||||
| 60-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 100-270mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| Macro Tungsten Carbide | Macro WC,MWC | 60-80mesh | Hard phase blend component for wear resistance |
Laser cladding, Arc Welding, PTA, Spray and fuse powder welding |
used as the materials of petroleum |
| 80-200mesh | geological drilling tire body | ||||
| 2000-400mesh | a new type of cemented carbide material. | ||||
| -325mesh | Mining equipment crushers and milling machinery,Heavy equipment mixer blades,decanters or extruder screws. | ||||
| Crystalline Tunsten Carbide | CTP | 60-325Mesh | strength and wear resistance | Vibration and liquid Metal Infitration | petroleum drilling diamond bits |
| 100-200mesh | as the raw materials of oil perforation pills,high temperature combustion chamber spraying coating | ||||
| 140-325mesh | wear resistance and high temperature resistance parts coating for slot or warehouse crashing parts,foklift buckets,crane hopper,screw feeder,ingot tongs and grind device components. | ||||
| Chromium Carbide | Cr3C2 | 140-325mesh | High temperature wear,oxidation and corrosion resistance | Atmospheric plasma spray/combustion powder thermospray | Piston rings,high friction coatings,hot forming dies,machine parts,hydraulic valves,wear protection on aluminum parts |
| 325-5um | For long-term protection of steel structure, first choice for all kinds of anti-corrosion engineering coating materials . | ||||
Related Products:
| Product | Regular Particle Size | Main Performance | Spray Process | Applicaitons |
| CTC+NiCrBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA | Oil exploration equipment and down hole drilling tools |
| CTC+NiBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA | Mild steel,stainless steel,Nickel alloys,Heat-treatable steels when preheated to 300℃ to avoid extensive cracking in the overlay |
| SCWC+NiCrBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA,Laser cladding,pray and fuse,spray-fuse | Drill collars and tool joints used on oil exploration equipment. |
| SCWC+NiBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA,Laser cladding,pray and fuse,spray-fuse | Ceramic conveyor screws,Agricultural shearing blades,Drill collars and tool joints used on oil exploration equipment.Heat-treatable steels when preheated to 300℃ to avoid extensive cracking in the overlay. |
| Macro WC+NiCrBSi | 150-53um/100-270mesh | Wear resistance | Oxy-acetylene welding, arc welding, PTA, laser cladding |
Mining equipment,Earth moving equipment,Food and chemical processing decanter screws |
| tubular welding rods | #2 Dia7*400mm 20-30mesh | Excellent wear resistance and impact resistance | Welding | Surfacing of workpiece surface in metallurgy, construction, grain and oil processing, mining machinery and other industries. |
| #3 Dia6*400mm 30-40mesh | ||||
| #4 Dia 5*400mm 40-60mesh | ||||
| #5 Dia4*400mm 60-80mesh | ||||
| Flexible welding rope | Dia4mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Wear resistance,Anti-Corrosion | Oxy-acetylene Welding | Oil bit, stabilizer , geological bit, feed screw etc. |
| Dia6mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
||||
| Dia8mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
About Boda:
About Boda:
Zhuzhou Jiangwu Boda Hard-facing Materials Co., Ltd. was founded in 2007, it’s located in Jiulong Technical and Economic Development Zone, Yanling,Hunan Province.It’s established by "Jiangxi Tungsten Industry Co., Ltd."
and "Zhuzhou Boda Tungsten industry Co., Ltd." as a joint venture.
Zhuzhou Jiangwu Boda Hard-facing Materials Co., Ltd. is a self-export-oriented production and marketing enterprises,
It’s has been committed to hard-surface materials manufacturing and sales since 1993, Which also has a broad and stable market at home and abroad.
Zhuzhou Jiangwu Boda Hard-facing Materials Co., Ltd. set thermal spraying (spray welding) powder, hard surface materials, refractory metal carbide and other new materials products R & D, production and sales in one, with professional R & D, production, sales and management team and quality assurance system, access to ISO9001:2015 Quality Management system certification, Product quality is stable, sold at home and abroad, widely used in oil extraction, aerospace, mining mining, mechanical tools and other fields.
"Boda" brand has won the trust and praise of many customers worldwide with its "excellent quality, brand complete, thoughtful service" image.
"Jiangwu boda" will continue to uphold the "customer first, integrity-based, win-win cooperation" concept, work together with friends from all walks of life at home and abroad to create a better future!
